MODULE MS2 - Fixed wall (part A)

• Wall mounting
• For connecting an additional fixed panel (left or right variant)

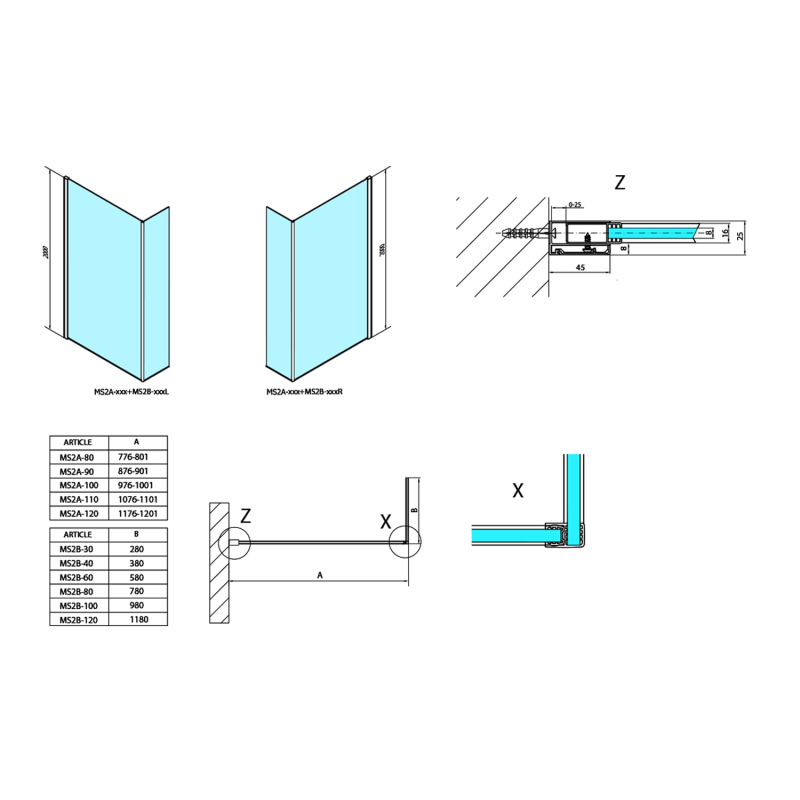

• Installation dimension: 976-1001 mm

In order to create a two-part "L" -shaped screen, it is necessary to purchase an additional fixed panel MS2B to the solid wall.
According to the dimensions of the additional panel MS2B it is necessary to buy a strut:

• For dimensions up to 60 cm part B (MS2B) any strut can be used
• For longer wing (MS2B) it is necessary to use strut MSBR1 or MSBR3 or a combination of struts MSBR1 and MSBR4 for stability

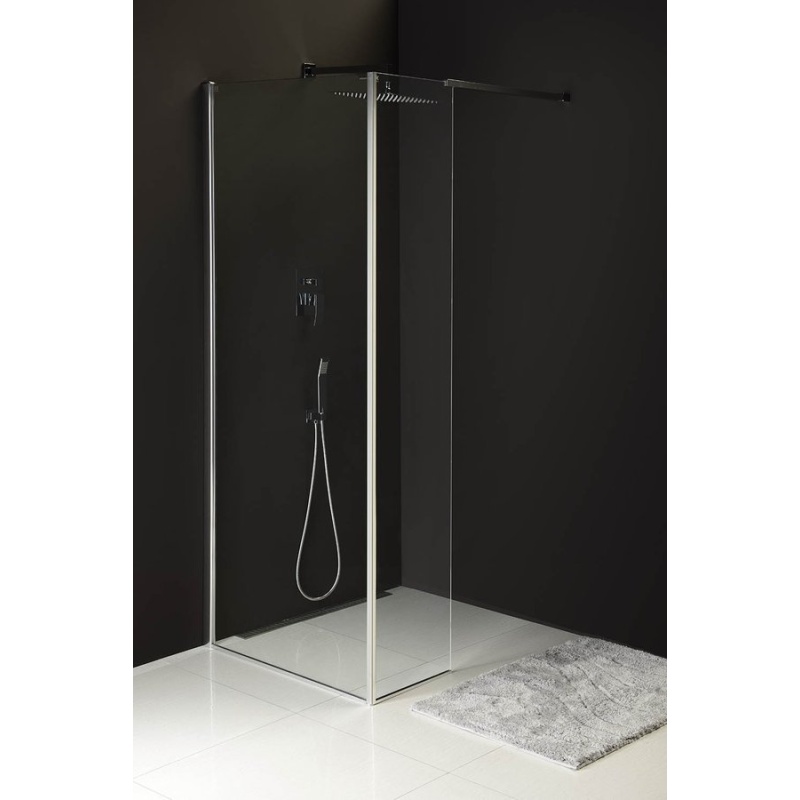

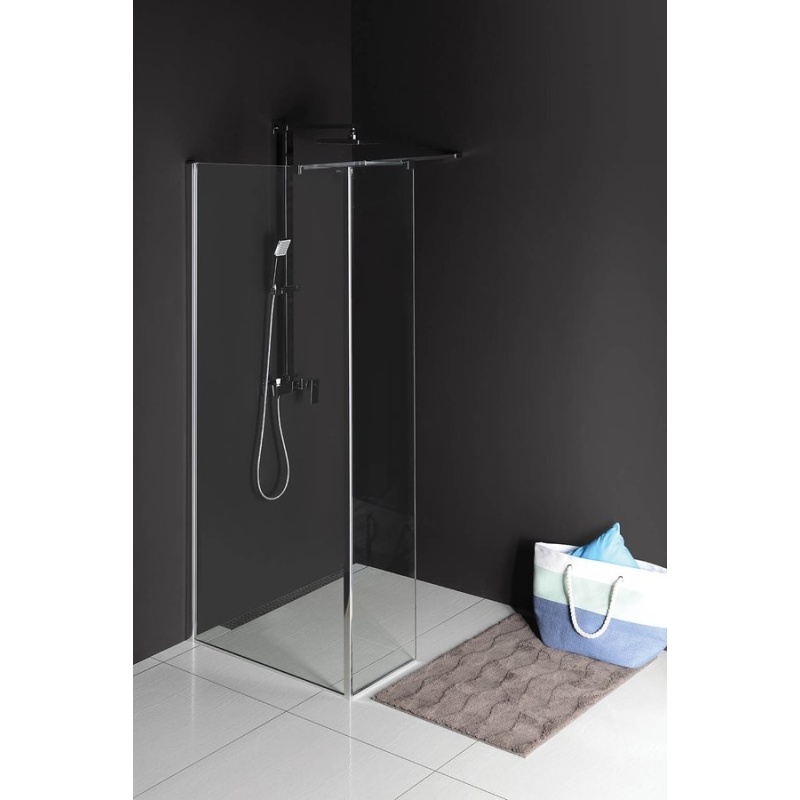

Characteristics of the overall Module MS2 - Two-part L-shaped wall - solid wall with an additional fixed panel

This module consists of two parts - A and B. Both parts are solid, fixed to the floor with silicone.

Part A:

• It is a solid wall made of clear glass and a wall profile with 0-30 mm adjustment for wall mounting
• It is universal for left and right versions, available in five sizes

Part B:

• There is an additional fixed panel with a connecting "U" profile to part A
• We offer in six widths, in right and left variants

In total, Module 2 can be combined in 30 variants.

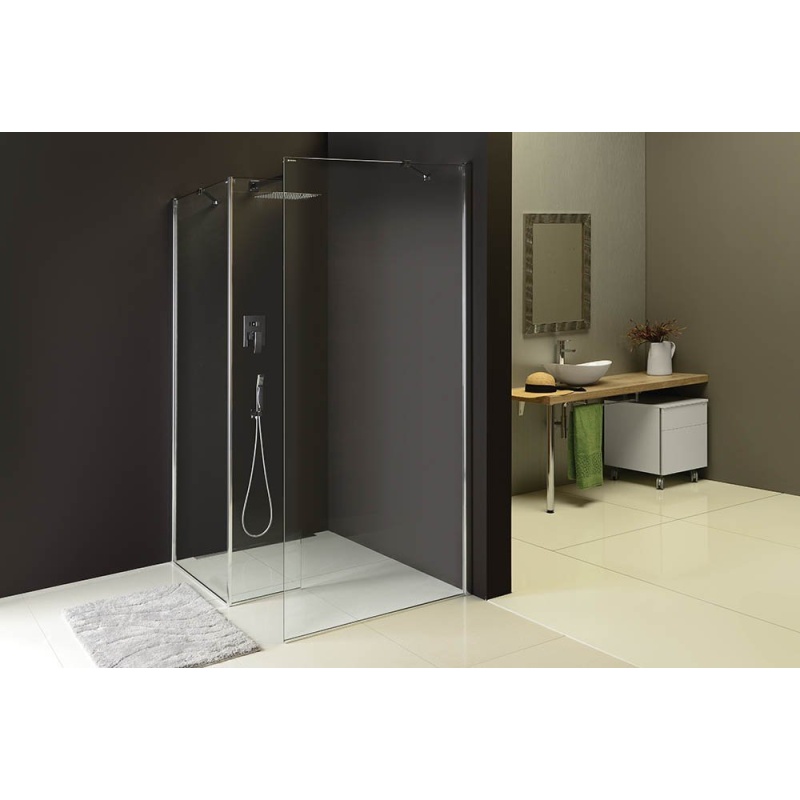

The modular solution allows many combinations of shower enclosure positions , examples of combinations:

The Modular shower screen concept offers glass modules with profiles for easy installation. The glasses are provided with an Antidrop surface treatment on both sides, which facilitates cleaning. The glass height of 2000 mm and the thickness of 8 mm are preserved. The glasses are equipped with an aluminum profile at the bottom, which gives the screens an elegant look, seals better and facilitates handling and installation.

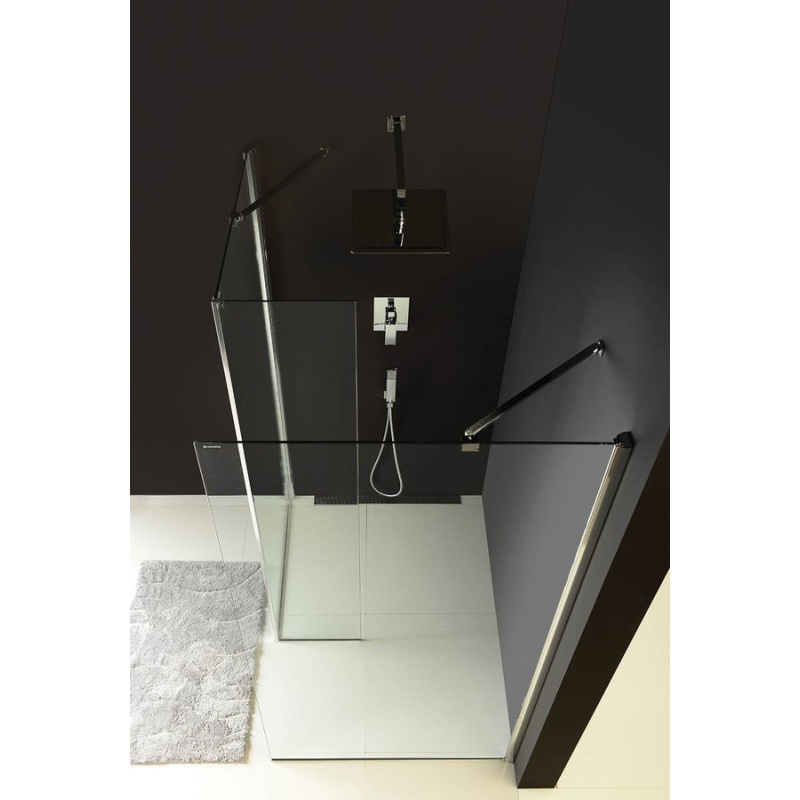

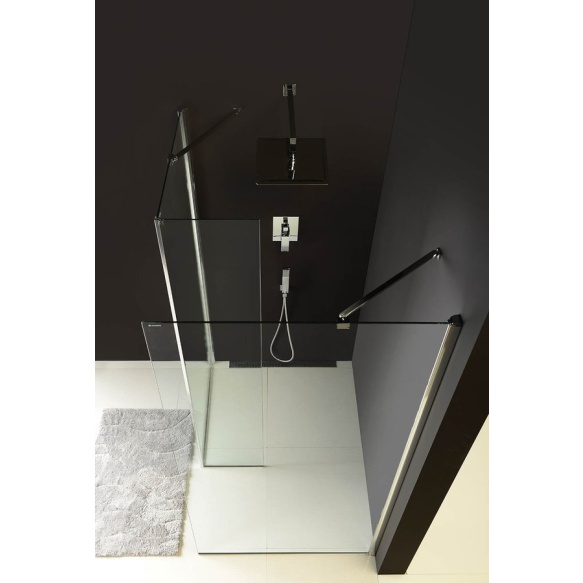

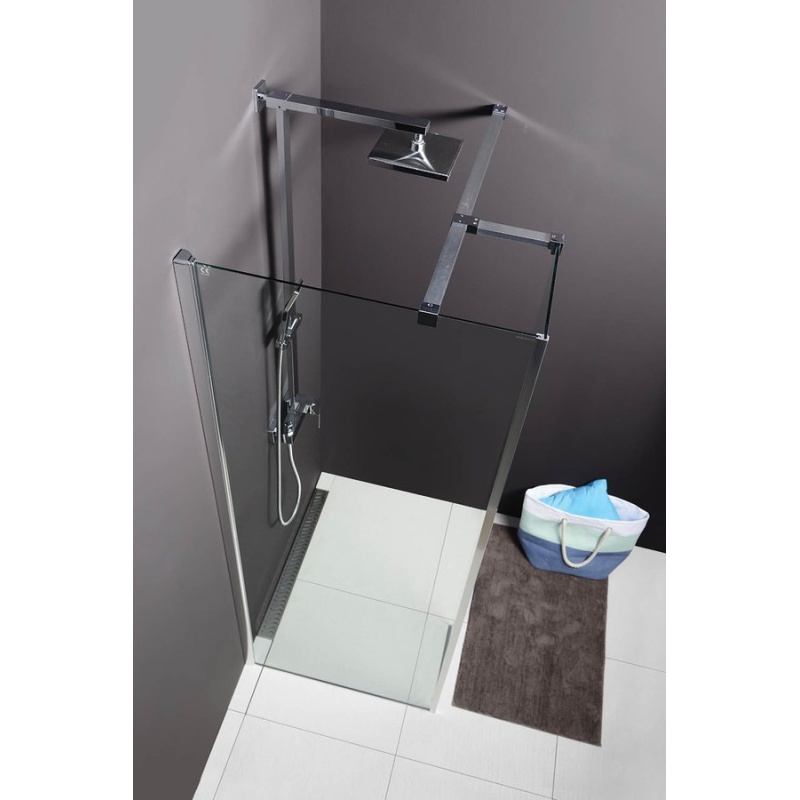

Depending on the dimensions of the glass, it is always necessary to purchase the necessary strut to ensure the stability of the screen. The struts are made of stainless steel and can be shortened as desired, the cut is hidden in chrome-plated end pieces (except for the corner struts, which cannot be modified).

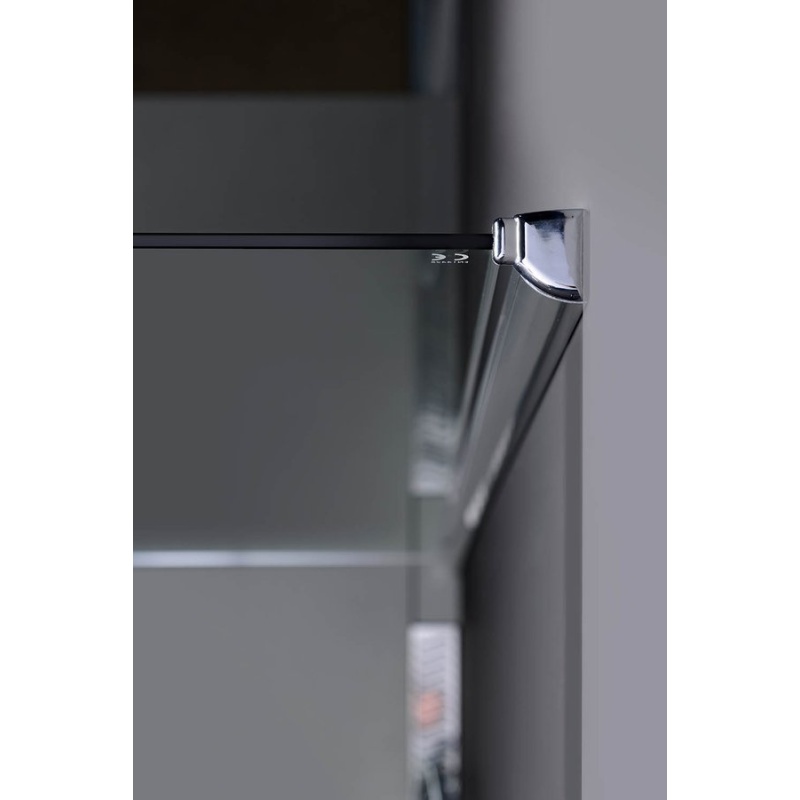

The wall profile allows tolerance settings
0-30 mm

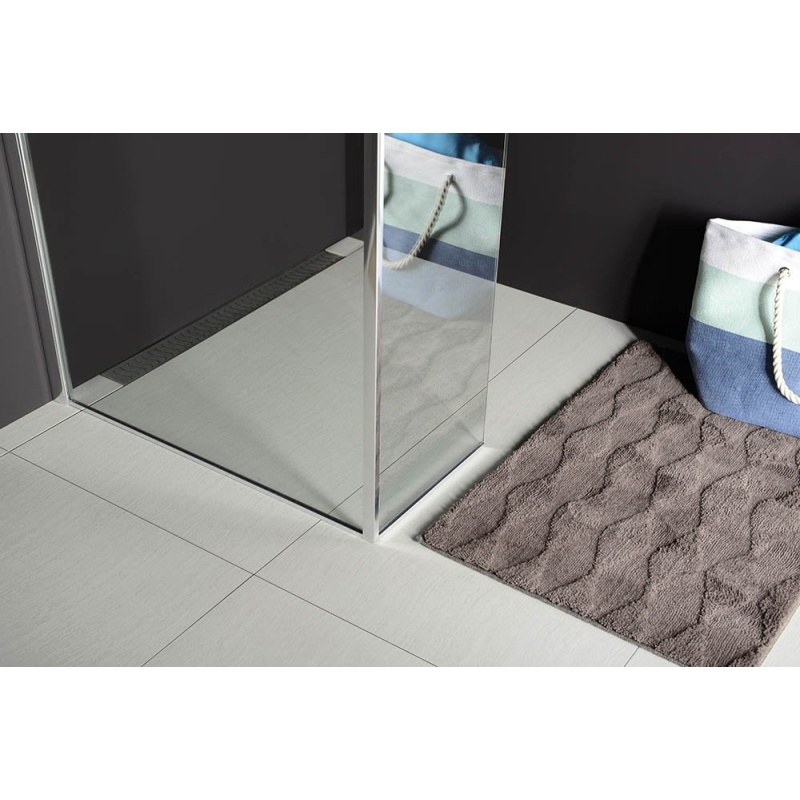

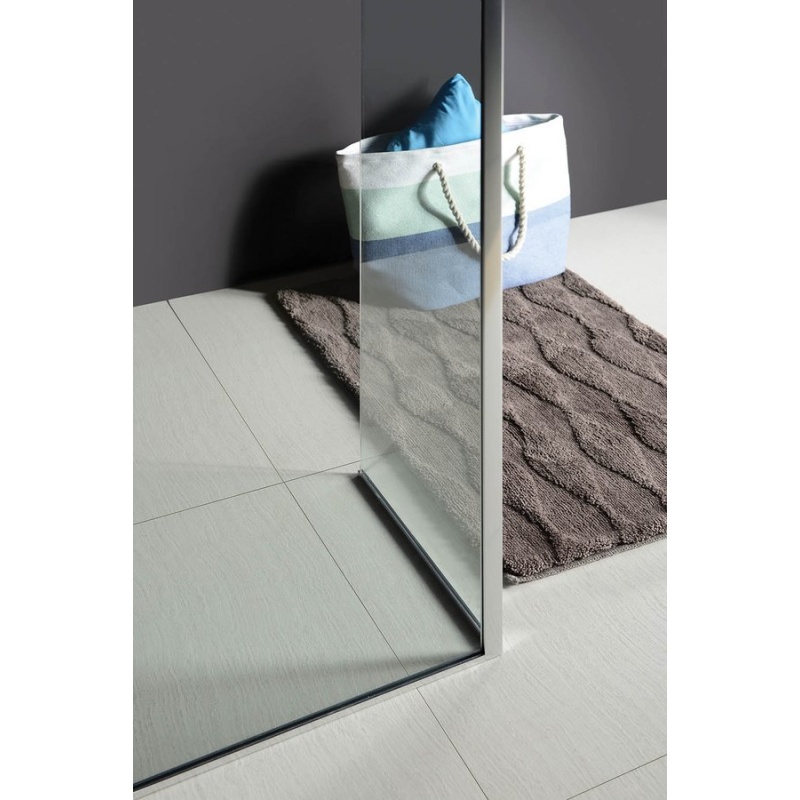

The glasses have an aluminum profile underneath, which gives the screens an elegant look, seals better and simplifies installation.
